Pacific Energy Neo 2.5 Inbuilt

Pacific Energy Neo 2.5 Inbuilt
Pacific Energy Neo 2.5 Inbuilt - Image 2
Pacific Energy Neo 2.5 Inbuilt - Image 3
Pacific Energy Neo 2.5 Inbuilt - Image 4

Pacific Energy Neo 2.5 Inbuilt

$0.00

  • High-efficiency built-in wood heater designed for medium to large living spaces and open plan homes

  • Advanced combustion technology delivers strong heat output while burning cleanly and efficiently

  • Generous firebox accommodates long logs and supports extended burn times

  • Large viewing glass provides a clear view of natural flames and enhances interior ambience

  • Thoughtful airflow and heat distribution design for effective and consistent room warmth

  • Intuitive air control for simple and responsive fire management

  • Built for lasting performance, combining classic wood fire appeal with modern heating effectiveness

Download Catalog
Category:

Description

The Pacific Energy Neo 2.5 Inbuilt wood heater is a high‑efficiency built‑in heating solution designed to deliver reliable and consistent warmth for medium to large living spaces and open plan homes. Engineered with advanced combustion technology and quality construction, the Neo 2.5 Inbuilt produces strong heat output while burning cleanly and efficiently to help reduce wood consumption and support lower emissions. Its generous firebox accommodates long logs and supports extended burn times that keep your home comfortable and warm throughout colder months. The large viewing glass provides a clear view of natural flames and enhances the ambience of interiors while integrating seamlessly into your fireplace opening. Thoughtful airflow and heat distribution design allow the Neo 2.5 Inbuilt to spread warmth effectively throughout the room, providing dependable performance for everyday heating needs. Intuitive air control makes managing the fire simple and responsive, adding to the ease of daily use. Built for lasting performance and everyday reliability, the Pacific Energy Neo 2.5 Inbuilt wood heater combines classic wood fire appeal with modern heating effectiveness to offer homeowners an attractive and practical built‑in heating solution that enhances comfort, warmth and style during the winter season. The Pacific Energy Neo 2.5 Inbuilt wood heater is ideal for those seeking efficient and dependable built‑in wood heating with timeless design.

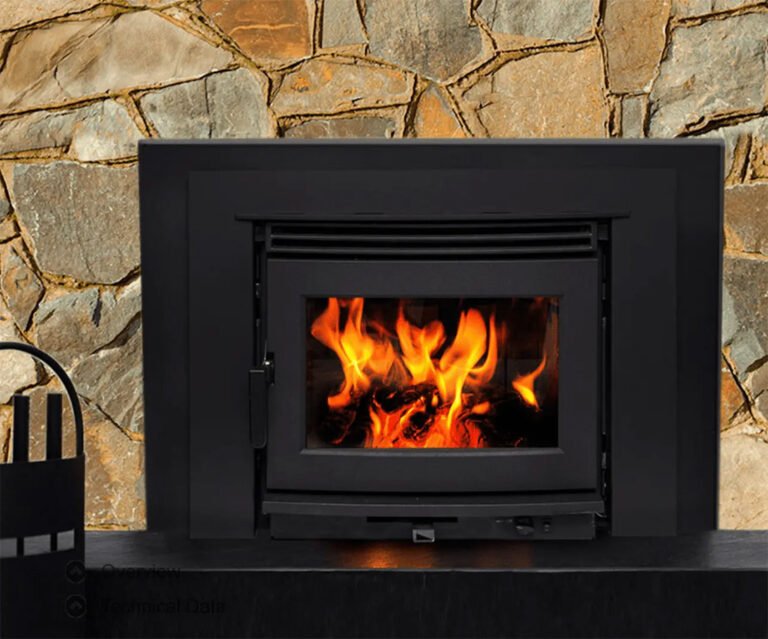

Burn less wood
With an impressive 72% average efficiency, The Neo is 25% more efficient than other heaters in its class. Saving you 1 tonne of wood every year, or $800.00 of savings.
See what make the Pacific Energy heaters perform
This video explains what the Pacific Energy difference is in getting the amazing efficiency and the most beautiful flames in your heater. Pacific Energy is more than just an ordinary wood heater : their unique after-burn baffle set up is the difference in performance
Want to upgrade your fireplace
Greg calls into THE BLOCK 2022 house to fix two issues. 1. How do you heat a home that is extremely cold? 2. How to keep pets safe around wood fires?
What makes the Neo Wood heater so different
The Neo 2.5 just doesn't burn wood - it burns the smoke. The unique baffle design burns off the smoke, not only giving you the most environmentally friendly and clean burning wood heater. It also has the most amazing flames to watch!
2025 approved
With changes in wood heating emissions coming in 2025 - the Neo 2.5 is already approved. The Neo 2.5 is tested at 1g, or a 5.5 Star rating (that's 70% cleaner burning than most wood heaters in this class)
Watch me burn
See why people rave about the flames in the Pacific Energy Neo Wood Heaters - the afterburn is so impressive! Glass size: 440mm x 235mm

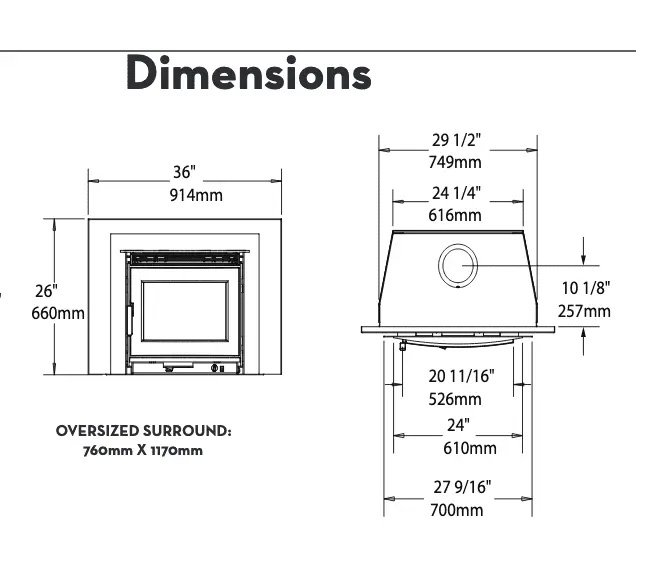

Dimensions
Firebox: 838mm wide x 546mm high x 502mm deep. Fascia: 1,020mm wide x 724mm high

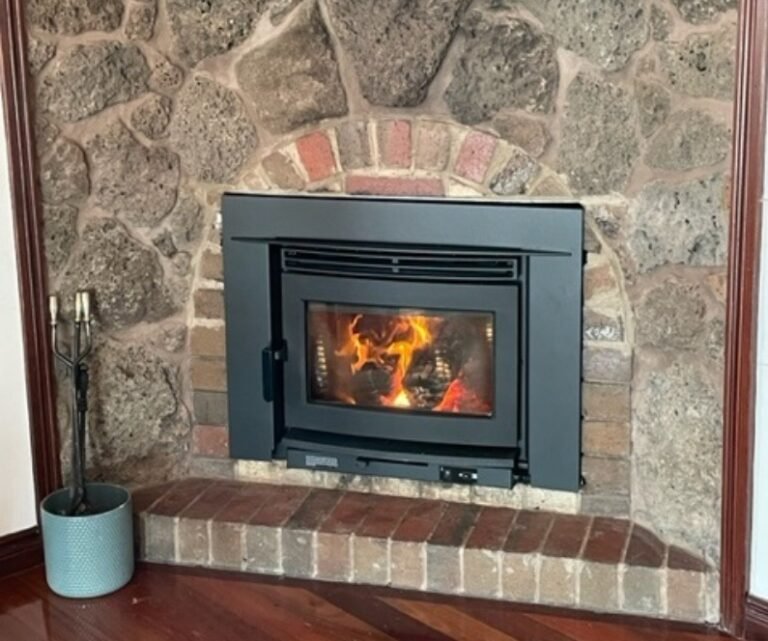

neo for existing chimneys
If you have an existing open fire place, the Neo 2.5 is chimney ready. Minimum opening required Height 560mm, Width 850mm and Depth 510mm
Overnight burn
The Neo 2.5 is an approved clean burning wood heater. This means you can achieve overnight burn. You can easily get over 12 hours on a full load of wood when shut the heater down all the way.
Neo 2.5 heats up to 300m² homes
The Pacific Energy Neo 2.5 has the heating capacity to heat up to a 300m² open plan home.
built like nothing else
Look inside any Pacific Energy wood heater and you will see there why these are no ordinary wood heaters. The baffle build is backed with a 10 year warranty, giving you security of the baffle's quality.
easy to clean
The Neo Inbuilt has not one, but two fans. These are mounted on either side of the firebox to prevent sucking dust up (This is unique to the Pacific Energy range). And they are easy to clean. No need for a tech - its a true DIY service!
Automatic fan
The optional Two Speed fan has a unique feature - It's Automatic! In Automatic mode, the fan will only turn on when the heater reaches temperature, no more blowing cold air around the house.
EBT - extended burn time
EBT is a feature that is perfect for taller chimneys that need extra flue. The EBT ensures your heater will perform perfectly no matter how much flue your heater requires.
fully firebrick lined
Fully fire brick lined means the walls and floor are completely covered with firebricks. This means 60% more thermal mass than other Wood Heaters. A hotter fire means a cleaner burning fire.
close with confidence
The "lock-style" door handle is so smooth to use. Every time you open & close the Neo door, you feel the quality, but rest assured the door is properly closed
True over night burn
The Neo 2.5 wood heater is a true slow combustion wood heater. On a full load of wood you will comfortably get over 12 hours of constant burn. In the morning, give the embers a poke, open up the air slide, and your fire is ready for its next load of wood.
How to stop draughts in your home
No matter which heater you choose, all wood heaters require air, and that can cause draughts in your home. This video goes over two simple things you can do to prevent cold draughts.
review
As for performance - wow! The Neo Inbuilt burns so clean and the flame pattern is amazing. The two fans are quiet and very easy to access for cleaning. The only comment would be with the glass size, not as large as some heaters, but the depth of the firebox and how clean the glass stays makes up for it. Our score is 9/10.

DIY Installation Guide

Step-by-step guidance to help you install your stove or heater safely and confidently.

Coming Soon — Check back shortly for installation videos, tips and guides

Pricing

Options

Flue Kit

New Home

Total: $5,234.00

Specification

dimensions
height 737mm
width 610mm
depth 711mm
clearances
Style Options Inbuilt for existing chimney
Color Options Black or Stainless Steel trim
Rear clearance to combustible 200mm
Side clearance to combustible 375mm
Corner clearance to combustible 200mm
Burn time 15h
info
flue size 150mm
min flue height 4mtrs
hot water No
heating capacity 280m2
Average efficiency 72%
Max efficiency 73%
Emissions 0.7grms
wood length 450mm
Chimney Install Yes
Zero Clearance See FP25
stove weight 170kg
Made in Canada
Firebox Dimensions (H x W x D) 725mm x 838mm x 502mm
Fascia Dimensions (H x W) 725mm x 1,020mm
Min Opening Requirements (H x W x D) 560mm x 850mm x 520mm
Power Lead Right hand side
Fan Yes - included

WARRANTY

10 year warranty on firebox, glass door, and baffle | 3 year warranty on any electrical parts (including fan)
