Gemini

$5,399.00

One cast iron arched door model on the firebox with square door on the oven

High efficiency US EPA NSPS 2020 and CSA B415.1 certified appliance

Recommended heating Area (sq. ft.) : 1,000 – 3,000

Color: metallic black

Model: Freestanding

Two chrome oven rack

Oven on top with thermometer

Hot air exaust hatch on top of the oven

Convection and radiation heating

Self-cleaning system of the glass surface

Low clearances to combustibles materials

Ceramic wool baffle

Outdoor air intake

Firebox lined with refractory bricks for better heat distribution

Stainless steel secondary air system improving gas combustion

Recommemded chimney: 6″

Low emissions 1.56 gr/h

LHV 77,75%

Recommended log length: 16″

Maximum log length: 22″

Mobile home certified

Tested as per applicable standards by Intertek

Wishlist Compare

Description

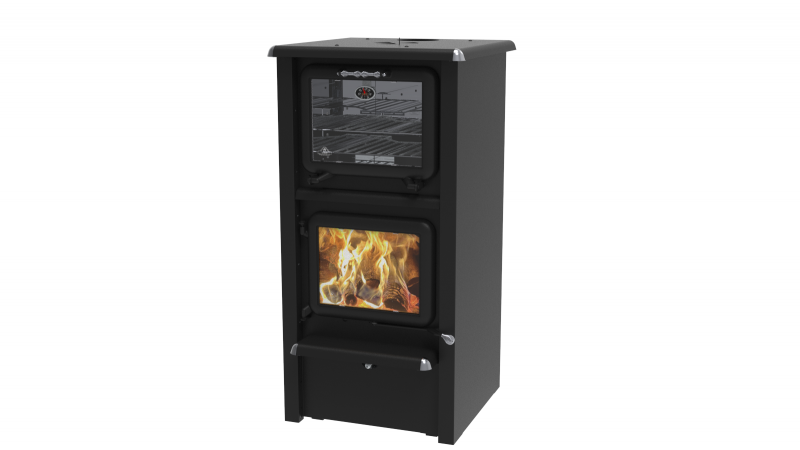

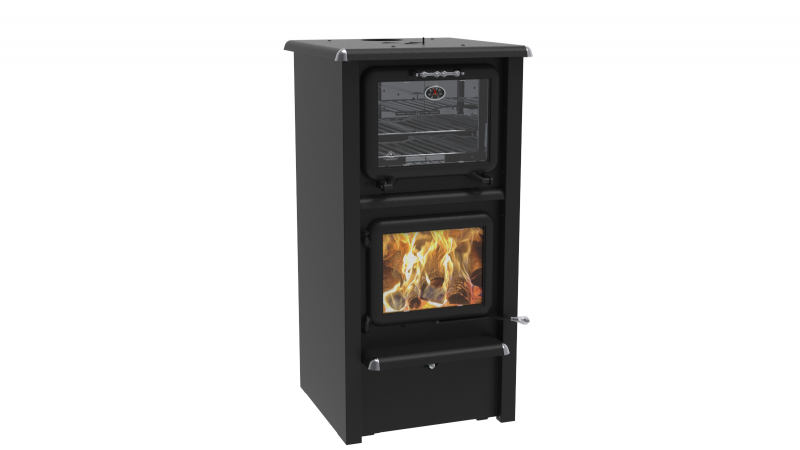

The Gemini stove offers a perfect blend of efficiency, performance, and convenience. Its unique design places the oven on top of the woodburning stove, saving space while providing easy access. The stove features a cast iron arched firebox door with a square oven door, two chrome oven racks, and an oven thermometer for precise cooking.

High-efficiency and certified by US EPA NSPS 2020 and CSA B415.1,   it is designed to heat spaces from 1,000 to 3,000 sq. ft.   The stove delivers both convection and radiation heating and includes a self-cleaning glass surface for easy maintenance.

Built with safety and durability in mind, the Gemini requires low clearances to combustible materials, has a ceramic wool baffle, and a firebox lined with refractory bricks for even heat distribution. It also features an outdoor air intake and a stainless steel secondary air system to improve gas combustion.

With a recommended chimney of 6″, low emissions of 1.56 gr/h, a thermal efficiency of 77.75%, and support for logs up to 22″ long, this mobile home-certified stove is tested by Intertek to meet strict standards. The hot air exhaust hatch on the oven top further enhances heat control and distribution.

Specifications

Type of fuel Wood
Recommended heating area 92.9 – 278.7 m²
Maximum output 16.14 kW
Firebox dimensions Width 45.72 cm, Height 38.42 cm, Depth 57.15 cm
Door opening dimensions 38.42 cm x 23.5 cm
Maximum log length 55.88 cm
Exteriors dimensions Width 66.36 cm, Height 139.38 cm, Depth 87.31 cm
Type of chimney 2100° F ≈ 1149° C
Exhaust pipe diameter 15.24 cm
Recommended chimney diameter 15.24 cm
Minimum chimney height 3.66 m
Minimum clearances to combustibles Back 42.55 cm, Side 40.64 cm, Corner 20.32 cm, Top 213.36 cm (measured from floor)
From collar to back 37.47 cm
From collar to side 59.06 cm
Weight 226.8 kg
Standard test – US emissions US EPA NSPA 2020
Warranty Limited lifetime
